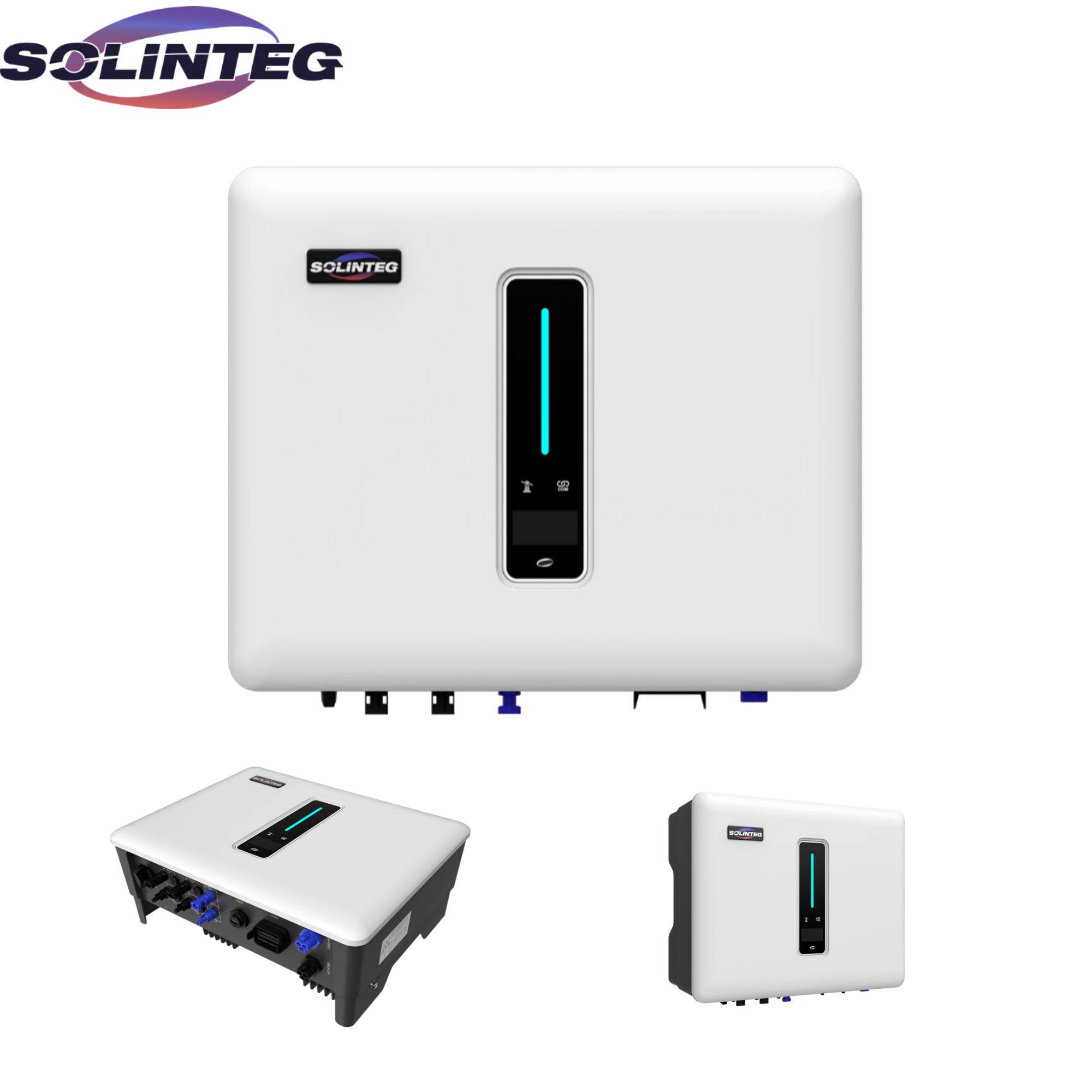

Solinteg Integ M Series Hybrid Inverter (3–8kW)

Description

• Model: MHS-3/3.6/4.2/5/6/8K-30

Core Electrical Parameters

• Max. PV Input Current: 15A
• Start-up Voltage: 80V
• Max. Charge/Discharge Current: 30A
• Phase: Single-Phase, Residential use
• Battery Type: HV Battery
• MPPT Quantity: 1–2 MPPTs
• PV Voltage Operating Range: 85–450V
• DC Oversizing Ratio: 160%
• Continuous AC Overloading Capacity: 110%
• Noise Level: 25dB
• Protection Rating: IP65

Maximized Energy Harvesting

• 160% DC oversizing boosts solar capture
• Starts at 80V for more generation time
• Continuous 110% AC overloading sustains power
• Smooth transition to backup power ensures continuity during power outages

Engineered for Versatility

• Wide 85–450V range fits diverse batteries
• IP65 protects both indoors and outdoors
• Silent 25dB operation for comfort

Intelligent Energy Dynamics

• 7 work modes for diverse use
• Supports both ToU and dynamic pricing strategies for optimized energy use and cost savings
• Centralized smart management for efficiency

Simplified Interaction

• Remote upgrades maintain system health
• Solinteg I-light for quick status checks
• OLED and App for easy control

Basic Product Info

• Product Line: Integ M Series
• Slogan: The Power Master
• Output Power Range: 3–8kW
• Document Version: AUS-MHS-3-8-NO1.01-2026
